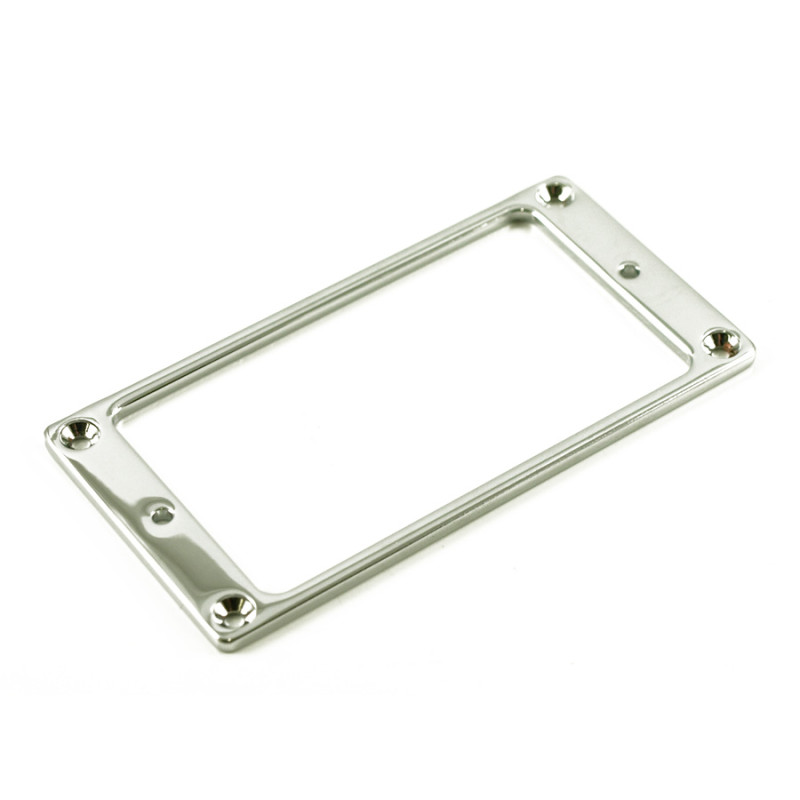

METAL HUMBUCKER MOUNTING RING CHROME

The ES16 is a flat metal mounting ring designed for use on flat top electrics where a limited range of up and down motion is required.

This is unlike a raised plastic ring which has internal space into which the pickup tabs can move up into.

Additional Product Information Important Specs and Dimensions:

Thickness of ring = 3/32 in. (2.5mm)

Outer Dimension Length = 3 31/64 in. (88.7mm)

Outer Dimension Width = 1 25/32 in. (45.1mm)

Pickup Cutout Length = 2 25/32 in. (70.75mm)

Pickup Cutout Width = 1 17/32 in. (39.08mm)

Mounting Hole Location Length apart = 3 5/32 in. (80.2mm)

Mounting hole location Width = 1 15.32 in. (37.25mm)

Pickup Mounting Screw Holes = 3 5/64 in. (78.1mm)
