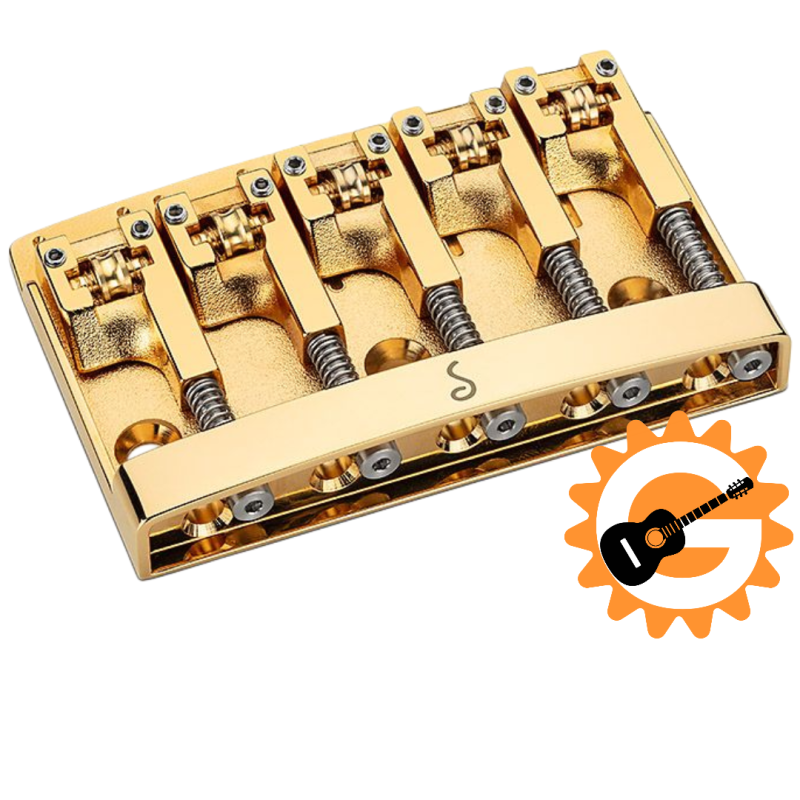

Schaller 3D-5 -Gold Bass bridge

Technical specifications

• String spacing (E-A): 65 - 70 mm
• String spacing individual (neigboring strings): 16 - 17.5 mm
• String radius: adjustable from 7" -  20"
• Minimal G/d string height above body: 12 mm
• Height adjustment: 5 mm
• Maximum string gauge: 0.135
• Weight: 212 gram, 274 gram with accessories
• Conversion for left-handed: Unscrew the string saddles except for the middle one and screw them back on exactly in a mirror image. Then the different rollers for the different strings are in the correct position again.
• Height adjustment screw: grub screw with conical point with hexagon socket M3 x 8
