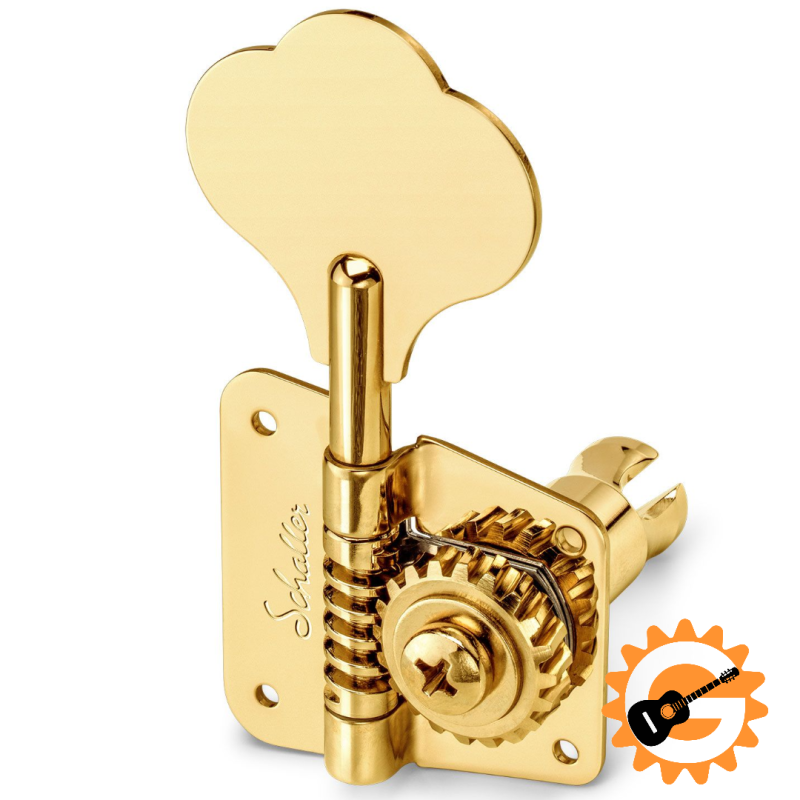

BM Fender-Style Schaller Bass tuners Gold

Perfect replacement tuner for Fender® Jazz® and Precision® basses*

• Built to original dimensions, they are perfect drop-in replacements.
• Counterfort-mount.
• All parts are precision-crafted and surface-finished, the self-locking drive ensures an
• even, delicate and steady tuning.
• All string posts are made of high-grade brass and fitted into the housing with utmost
• precision, ensuring the best possible tuning accuracy and wear resistance.
• You can switch from right to left and vice versa by yourself. Please unscrew the screw
• from the worm gear, lift the worm gear, turn around the worm screw with the button,
• place the worm gear again and tighten the screw.

(*Fender® Jazz-Bass® and Precision-Bass® are protected trademarks owned by Fender

Musical Instruments Corporation).

Technical specifications

• Gear ratio: 1:20
• Weight: 101 g per single tuner including press-in bushing

Scope of supply

• 5 x press-in bushings, outside diameter for borehole 17.5 mm
• 20 x mounting screws: M2.2 x 9.5

(Schaller GmbH accepts no responsibility or liability for the correctness, accuracy and

completeness of the following technical drawing/s.)
