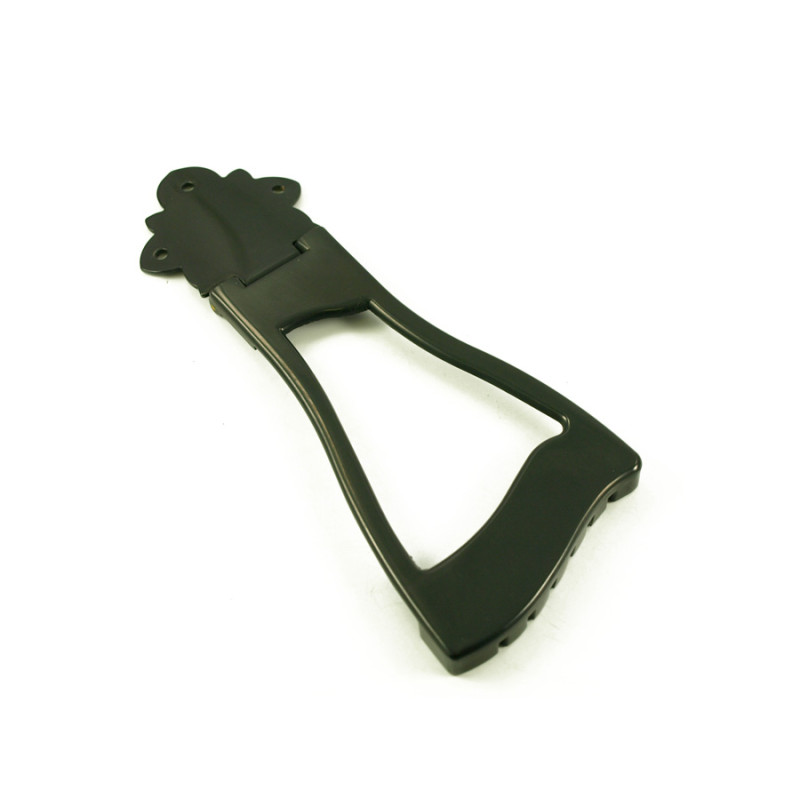

FANCY JAZZ TAILPIECE BLACK

This deluxe archtop tailpiece is suitable for dressing up any hollowbody guitar. --- Additional Product Information Important Specs and Dimensions: PLEASE NOTE ALL LENGTH DIMENSIONS ARE BASED OFF THE CENTER OF THE HINGE PIN LOCATION. Length of tailpiece to hinge pin ctr = 5 21/64 inches (135.5mm) Length of mounting plate from hinge pin ctr = 2 17/64 inches (57mm) Width of tailpiece at string through = 3 inches (76.5mm) String Spacing at tailpiece = 13/32 inch (10.2mm) Width of mounting plate at points by L & R mounting holes = 2 5/16 inches (58.8mm) Mounting hole locations: Left and right holes measured in from points to hole ctr = 5/16 inch (8.1mm) Bottom mounting hole measured in from point to hole ctr = 27/64 inch (10.8mm) Distance between left and right mounting holes ctr to ctr = 1 11/16 inches Distance from bottom hole to intersection of left / right mounting hole horizon line, ctr to ctr = 25/32 inch (19.7mm) Material = zinc die cast with steel bracket and hinge pin
